Engine valves work under brutal conditions—opening and closing thousands of times per minute while handling combustion pressures over 1,000 PSI and temperatures up to 800°C. When they start failing, the effects range from annoying performance issues to complete engine destruction.
Bad valves lose compression, causing misfires and rough running. In the worst cases, a broken valve can destroy pistons, cylinder walls, and the entire engine in seconds. The key is catching problems early before minor issues turn into expensive repairs.
This guide covers the most common valve problems, how to spot them, what causes them, and how to fix them—based on TOPU's two decades of valve manufacturing experience.

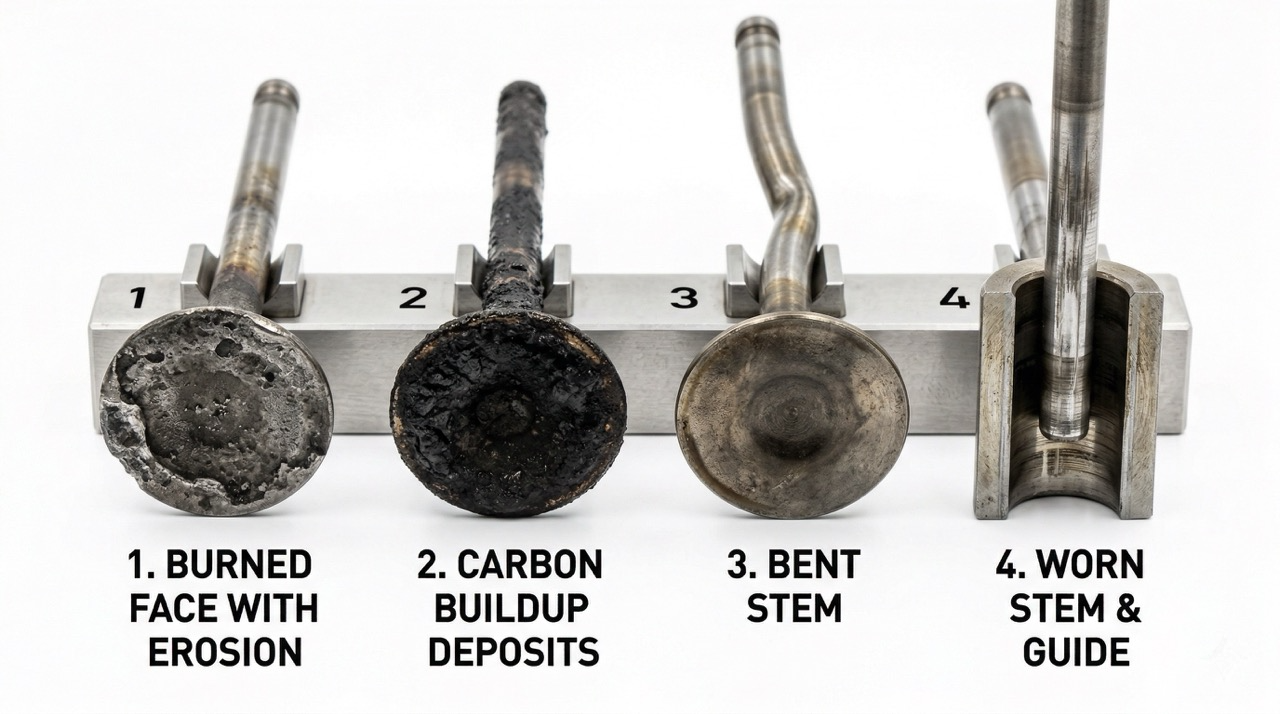

Common Engine Valve Problems
Valve Burning and Erosion
Valve burning is the most serious common problem. Extreme heat and corrosive exhaust gases gradually eat away at the valve face, creating pits, grooves, or complete burn-through. Exhaust valves take the worst beating since they're exposed to 800°C exhaust gases.
The damage usually starts at the valve face edge where it seals. A small pit forms, letting hot gases escape even when the valve is closed. These escaping gases concentrate more heat on the damaged spot, making it worse. Once started, the erosion accelerates fast—eventually creating a notch or burning completely through.
Burned valves kill compression in that cylinder, causing misfires, rough idle, and power loss. Severe burn-through means the cylinder won't fire at all. The unburned fuel can wreck your catalytic converter. Ignore it long enough, and pieces of the burned valve can break off and destroy your engine.
Valve Leaking
Leaking happens when the valve face doesn't seal properly against its seat. Unlike burning (actual material damage), leaking can come from carbon deposits preventing proper seating, minor wear creating gaps, bent valve stems causing misalignment, or worn valve guides letting the valve wobble.
Leaking valves gradually kill performance. You lose compression and power. The affected cylinder runs lean because some air-fuel mixture escapes during compression. You might get backfiring through the intake or exhaust as combustion gases leak past the valves.
Carbon Buildup
Carbon deposits pile up on valve faces and seats from combustion byproducts. Exhaust valves run hot enough to burn off most deposits, but intake valves—especially in direct-injection engines—get caked with carbon. The deposits prevent proper seating, causing compression loss and rough running.
Heavy carbon buildup can stop valves from closing fully, causing compression loss and potential valve damage from excessive heat. The deposits also insulate the valve, blocking heat transfer to the cylinder head and making the valve run hotter than it should.
Valve Stem Seal Failure
Valve stem seals keep oil from sliding down the valve stem into the combustion chamber. When they fail, oil gets in and burns, creating blue-gray smoke and eating through your oil.
Intake valve seals fail more often because intake manifold vacuum actively sucks oil past worn seals. You'll notice it most during deceleration when vacuum is highest—blue smoke appears when you let off the gas or after idling, then clears when you accelerate.
Valve Guide Wear
Valve guides are cylindrical sleeves that keep the valve stem moving straight. When they wear out, excessive clearance lets the valve wobble. This causes uneven valve face wear, accelerated seal wear, and poor seating.
Worn guides cause multiple problems: increased oil consumption (seals can't work with a wobbling stem), blue smoke, ticking or tapping noises from excessive clearance, and compression loss from poor seating. Severe guide wear can even break the valve stem from side loading.
Valve Spring Failure
Valve springs close the valves and keep the valve train in contact throughout the cycle. Springs can break from fatigue, lose tension from heat and stress, or bind up from corrosion. Failed springs cause catastrophic problems.
A broken spring lets the valve drop into the cylinder or bounce uncontrollably. The valve can hit the piston, causing immediate engine damage. Even partial spring failure causes valve float at high RPM—the spring can't control the valve's motion, so it bounces off its seat and potentially hits the piston.
Bent or Broken Valves
Valves bend or break from several causes: timing belt/chain failure causing valve-piston collision in interference engines, over-revving causing valve float and piston contact, foreign objects entering the intake, or manufacturing defects.
A bent valve won't seal properly, causing compression loss and rough running. A broken valve dropping into the cylinder causes immediate catastrophic damage—destroying the piston, cylinder wall, and potentially the entire engine.
Symptoms of Bad Valves
Performance Issues
Power loss is usually the first thing you'll notice. The engine feels sluggish and won't accelerate like it should. The power loss might be across all RPM ranges or worse at specific speeds. Merging onto highways or climbing hills becomes a struggle.
Fuel economy tanks as the engine tries to compensate for reduced efficiency. The computer increases fuel delivery to maintain power, but poor valve sealing prevents efficient combustion. You can lose 10-20% or more on fuel economy with severe valve problems.
Sounds You'll Hear
Abnormal noises give early warning. Ticking or tapping from the cylinder head area suggests valve clearance issues, worn parts, or lifter problems. Hissing during idle or acceleration means compression is escaping past leaking valves.
Backfiring through the intake happens when intake valves leak, letting combustion pressure escape backward. Backfiring through the exhaust occurs when exhaust valves leak or unburned fuel ignites in the exhaust. Both mean valve sealing problems.
What You'll See
Blue-gray smoke from the exhaust means oil burning—usually from worn valve guides or failed stem seals. You'll see it most during cold starts, after idling, or when decelerating (high manifold vacuum).
Black smoke indicates rich fuel mixture, which can happen when valve problems confuse the engine computer. White smoke suggests coolant in the combustion chamber—typically a head gasket issue, though symptoms can overlap.
The check engine light comes on when valve problems cause misfires or affect emissions. Common codes: P0300 series (misfires), P0420/P0430 (catalyst efficiency from unburned fuel), or P0171/P0174 (lean codes from compression loss).
Mechanical Symptoms
Compression loss is the definitive sign. A compression test shows which cylinders are affected and how bad it is. Readings 20% or more below spec mean significant problems.
Engine vibration and rough idle result from cylinders not producing normal power. The power imbalance shakes the engine, especially at idle. The vibration might smooth out at higher RPM as momentum masks the imbalance.
Hard starting, particularly when hot, can indicate valve problems. Leaking valves reduce compression, making the engine harder to crank. If it starts fine cold but struggles hot, suspect valve sealing issues that worsen with thermal expansion.
Causes of Valve Problems
Overheating
Engine overheating is a primary cause of valve damage. Excessive heat softens valve materials and can cause warping. Exhaust valves are especially vulnerable—temperatures beyond their design limits cause rapid deterioration. Overheating also loosens valve seats in the cylinder head, causing compression loss and potential valve damage.
Poor Maintenance
Skipping maintenance accelerates valve problems. Extended oil change intervals let abrasive particles accumulate, wearing valve stems and guides. Dirty oil doesn't lubricate properly. Ignoring cooling system maintenance leads to overheating. Skipping timing belt replacement risks belt failure, which destroys valves in interference engines.
Low Quality Fuel
Poor fuel without adequate detergents lets carbon pile up on valves. These deposits prevent proper seating and insulate valves, making them run hotter. Wrong octane fuel can cause detonation, creating extreme pressures and temperatures that damage valves. Contaminated fuel with water or particles causes combustion problems affecting valve temperatures and wear.
Incorrect Valve Clearance
For engines with mechanical lifters, wrong valve clearance causes problems. Too much clearance reduces valve lift and creates impact forces that accelerate wear. Too little clearance prevents valves from fully closing, causing compression loss and potential burning from inadequate cooling. Even hydraulic lifters can develop clearance problems if they collapse or fail.
Timing Issues
Wrong valve timing from stretched chains, worn gears, or improper installation makes valves open and close at the wrong times. This disrupts combustion, reducing power and efficiency. Severe timing problems can cause valve-piston contact. Timing belt or chain failure in interference engines causes immediate catastrophic damage.
Detonation and Pre-Ignition
Detonation happens when the air-fuel mixture ignites spontaneously before the spark plug fires, creating extreme pressure spikes. Pre-ignition occurs when hot spots ignite the mixture prematurely. Both create abnormal combustion that can crack valve faces, erode valve edges, or cause complete failure.
Diagnosing Valve Problems
Compression Test
A compression test is the fundamental diagnostic tool. It measures each cylinder's ability to build and hold pressure during compression. Low compression in one or more cylinders indicates sealing problems—often from valves.
Run the test with all spark plugs removed, throttle wide open, and battery fully charged. Crank the engine through several compression strokes for each cylinder and record peak pressure. Compare readings across cylinders and against specs.
Readings 20% or more below spec or 15% variation between cylinders indicate problems. To distinguish valve problems from ring problems, add a small amount of oil to the low cylinder and retest. If compression improves significantly, it's the rings. If it stays low, it's likely the valves.
Leak-Down Test
A leak-down test gives more detail than a compression test. It pressurizes each cylinder with compressed air at top dead center, then measures how quickly pressure leaks away and where it's going.
Listen for escaping air while the cylinder is pressurized. Air hissing from the intake means intake valve leakage. Air from the exhaust means exhaust valve leakage. Air from the oil filler or crankcase means ring leakage. Air from the cooling system means head gasket leakage.
Leak-down above 15-20% indicates significant problems. Combined with listening for leak location, this test definitively identifies valve sealing issues.
Cylinder Balance Test
A cylinder balance (or power balance) test identifies which cylinders aren't producing normal power. The test disables each cylinder individually while monitoring RPM drop. Cylinders producing normal power cause significant RPM drop when disabled. Weak cylinders cause little change because they weren't contributing much.
This quickly identifies problem cylinders, focusing diagnosis on specific valves. Modern scan tools can do this electronically by disabling injectors or ignition.
Borescope Inspection
A borescope lets you visually inspect valves, seats, and combustion chambers without disassembly. Insert it through the spark plug hole to view the combustion chamber. Look for carbon deposits, damaged or eroded valve faces, or obvious mechanical damage.
While a borescope can't measure clearances or do functional tests, it reveals visible damage and helps confirm diagnoses from other tests.
Valve Clearance Check
For engines with mechanical lifters, checking valve clearances identifies whether noise or performance problems come from improper adjustment. Measure clearances per the manufacturer's procedure—typically with the engine cold and each cylinder at top dead center on compression.
Clearances outside spec require adjustment. If clearances are correct but problems persist, the issue is elsewhere—worn components, lifter problems, or actual valve damage rather than simple adjustment.
What Happens When Valves Go Bad?
Immediate Effects
When valves begin failing, the immediate effects are noticeable. The affected cylinder loses compression, reducing its power contribution. The engine runs rough, particularly at idle where the power imbalance is most apparent. Fuel economy deteriorates as the engine management system attempts to compensate.
Misfires occur as the cylinder fails to fire properly. The check engine light illuminates with misfire codes. Unburned fuel from the misfiring cylinder enters the exhaust system, potentially damaging the catalytic converter.

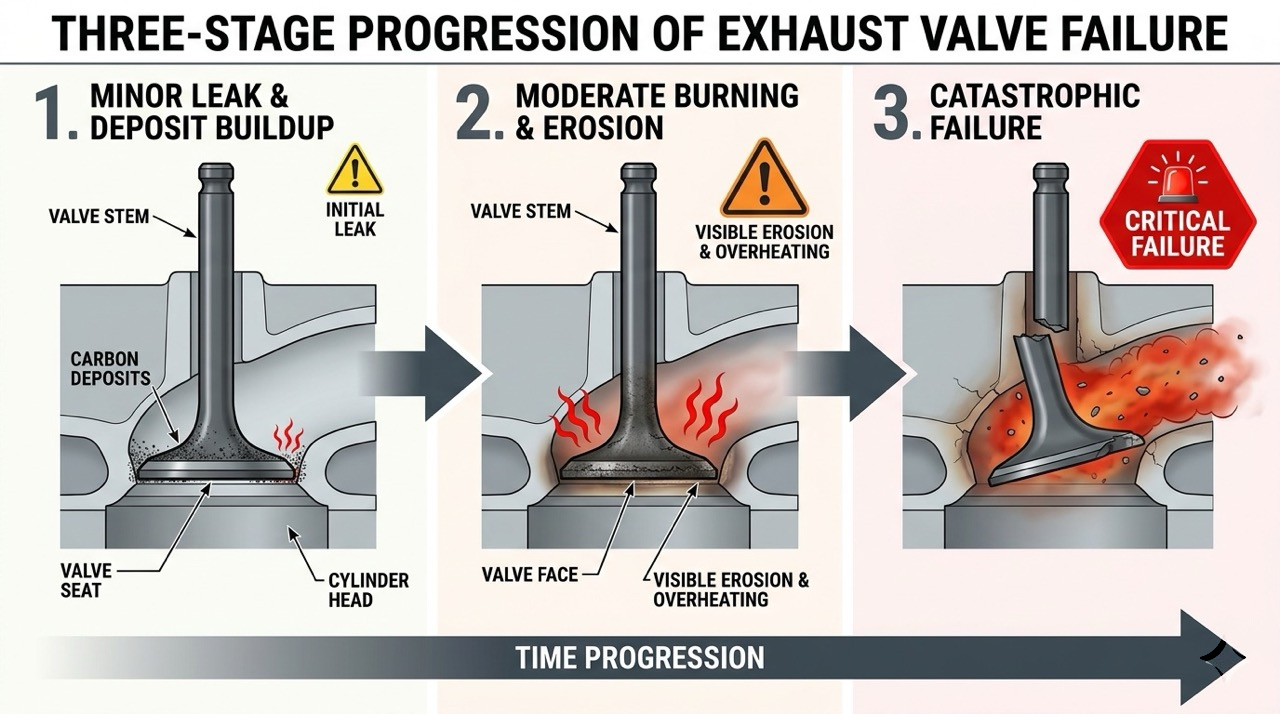

Progressive Damage
Valve problems rarely remain static—they typically worsen over time. A small leak becomes larger as escaping gases erode the valve face and seat. A minor carbon deposit grows as more deposits accumulate. Worn valve guides allow increasing wobble that accelerates wear.
As damage progresses, symptoms intensify. Mild roughness becomes severe vibration. Occasional misfires become constant. Minor power loss becomes significant performance degradation. The rate of progression varies, but addressing problems early prevents more serious damage.
Potential Catastrophic Failure
Severe valve problems can cause catastrophic engine failure. A burned valve can break apart, with pieces falling into the cylinder. These metal fragments can destroy the piston, score cylinder walls, and damage other valves. The engine may seize completely or suffer damage requiring complete replacement.
Timing belt failure in interference engines causes valves and pistons to collide. The impact bends valves, damages pistons, and can crack the cylinder head. Repair costs often exceed the vehicle's value, effectively totaling the car.
A dropped valve—one that falls completely into the cylinder from a broken stem or failed keeper—causes immediate catastrophic damage. The piston strikes the valve at high speed, destroying both components and potentially cracking the engine block.
Impact on Other Components
Valve problems affect components throughout the engine. Misfires from bad valves send unburned fuel into the exhaust, where it can overheat and damage the catalytic converter. Catalyst replacement adds $1,000-2,500 to repair costs.
Compression loss from leaking valves forces the engine management system to compensate with additional fuel, increasing fuel consumption and potentially causing carbon buildup on other components. The affected cylinder runs rich, fouling the spark plug and potentially damaging the oxygen sensor.
Mechanical valve damage from contact with pistons often destroys pistons, requiring complete engine rebuild or replacement. The collision can also crack the cylinder head, bend connecting rods, or damage the crankshaft.
Prevention Strategies
Regular Maintenance
Following the manufacturer's maintenance schedule prevents most valve problems. Regular oil changes maintain proper lubrication for valve stems and guides. Cooling system maintenance prevents overheating that damages valves. Timing belt replacement at specified intervals prevents catastrophic valve-to-piston contact.
Valve clearance adjustment for engines with mechanical lifters maintains proper valve operation and prevents excessive wear. Skipping these adjustments allows clearances to increase, causing impact forces that accelerate wear.
Quality Fuel and Oil
Using quality fuel with proper octane rating prevents detonation and pre-ignition that can damage valves. Top-tier fuels with enhanced detergent packages help prevent carbon buildup on valves. Avoid consistently using the cheapest fuel available—the savings aren't worth the potential problems.
Quality engine oil meeting manufacturer specifications protects valve stems, guides, and other valve train components. For engines with flat-tappet cams, use oil with adequate ZDDP content. Change oil at recommended intervals or more frequently in severe service conditions.
Proper Warm-Up
Allowing proper warm-up before heavy acceleration or high loads helps prevent valve problems. Cold engines have larger clearances and less effective lubrication. Gentle driving for the first few minutes after cold starts allows oil to reach all components and temperatures to stabilize.
Avoid extended idling, particularly with cold oil. Idling provides minimal lubrication to upper engine components and can cause carbon buildup. Brief warm-up followed by gentle driving is better than extended idling.
Avoid Overheating
Maintaining proper cooling system function prevents overheating that damages valves. Monitor the temperature gauge and address any overheating immediately. Check coolant level regularly and investigate any consumption or leaks.
Ensure the cooling system is properly maintained with fresh coolant at the correct concentration. Old coolant loses its protective properties and can cause corrosion or inadequate heat transfer.
Timely Repairs
Address any engine problems promptly before they cause valve damage. Misfires, rough running, unusual noises, or performance changes all warrant investigation. Early detection and correction prevent minor issues from escalating into major repairs.
If the check engine light illuminates, have the codes read and address the underlying problem. Ignoring warning signs allows damage to progress and often results in more expensive repairs.
When to Seek Professional Help
Warning Signs
Certain symptoms require immediate professional attention. Sudden loud noises from the engine, particularly metallic clanking or rattling, suggest serious mechanical problems. Sudden severe power loss or engine vibration indicates major problems. Blue or white smoke from the exhaust in large quantities suggests serious internal problems.
The check engine light flashing rather than staying solid indicates misfires severe enough to potentially damage the catalytic converter. Stop driving and have the vehicle towed to prevent catalyst damage.
DIY vs Professional
Simple maintenance like oil changes and visual inspections are appropriate for DIY. However, valve problems typically require professional diagnosis and repair. The diagnostic equipment, specialized tools, and expertise needed for proper valve work exceed most DIYers' capabilities.
Valve repair or replacement requires cylinder head removal, disassembly, precision machining, and careful reassembly. Mistakes can cause serious engine damage. Unless you have significant mechanical experience, proper tools, and workspace, professional repair is the appropriate choice.
Cost of Delay
Addressing valve problems promptly typically costs less than waiting. A minor leak that could be fixed with valve grinding becomes a burned valve requiring replacement. A single burned valve becomes multiple damaged valves if ignored. Valve problems that damage the catalytic converter add $1,000-2,500 to repair costs.
Most importantly, catastrophic valve failure can destroy the entire engine. An engine replacement or complete rebuild costs $3,000-8,000 or more. Addressing valve problems when symptoms first appear prevents this worst-case scenario.
